Infraestructura de FreeBSDHost

Centros de Datos

FreeBSDHost se encuentra en uno de los Datacenters mas grandes del mundo,
el cual sirve a mas de 22,000 empresas en constante crecimiento, el mismo,
cuenta con una red redundante por completo en 2 ciudades y monitoreada
24x7x365.
Los Datacenters de FreeBSDHost cuentan con una infraestructura de comunicaciones capaz de proveer mas de 100gb/s.
Cabe mencionar que el principal proveedor para nuestros servidores es el Datacenter #1 (privately held).

Plataforma de Comunicaciones:

          • Cisco Certified Network
          • Juniper M20 Border Routers
          • Cisco 6500 Series Distribution Routing Switches
          • Cisco 6500 Series Aggregation Switches
          • 100% Uptime SLA utilizing HSRP/BGP

Carriers y Accesos Internacionales:

          • 3 Gbps Direct Fiber - Global Crossing
          • 3 Gbps Direct Fiber - UUNET
          • 5 Gbps Direct Fiber - AT&T
          • 4 Gbps Direct Fiber - Level3
          • 4 Gbps Direct Fiber - AboveNet
          • 4 Gbps Direct Fiber - Savvis
          • 1 Gbps Direct Fiber - Time Warner
          • 4 Gbps Direct Fiber - Private Peers


Acceso General:

          • T3 and T1 Access - EPGN
          • T3 and T1 Access - SBC
          • T3 and T1 Access - Time Warner
          • T3 and T1 Access - XO Communications
          • T3 and T1 Access - MCI


          STX2: Stemmons Freeway, Dallas, TX

                    • 78,500 sq. ft. facility
                    • 35,500 sq. ft. raised floor
                    • (23) HVAC units totalling 574 tons
                    • Very Early Smoke Detection Apparatus (VESDA)
                    • Pre-action dry pipe sprinkler system
                    • Over 500 smoke detectors in integrated system
                    • Northern Proximity security badge entry/exit
                    • Multiple TXU electrical grids
                    • 4800 amps of 480v input power
                    • 3 main transfer switches

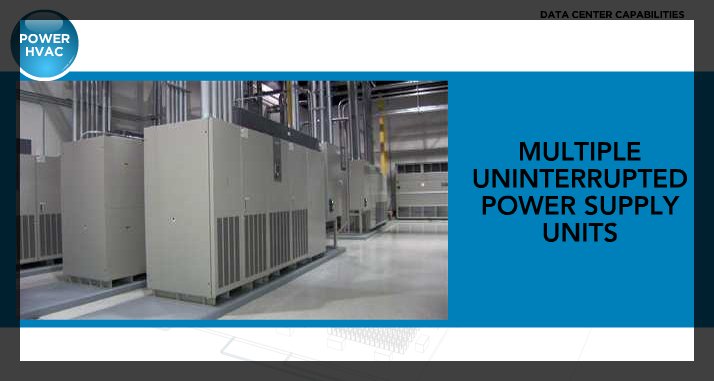

                    • (3) 500KVA Powerware UPS units, 90 batteries each
                    • Standalone PDUs at each cabinet row
                    • 1-megawatt generator (2000 gallon tank)
                    • 1.5-megawatt generator (2200 gallon tank)
                    • DataTrax monitoring for all datacenter infrastructure


          STX4: Downtown, Dallas, TX

                    • 22,000 sq. ft. facility
                    • 18,000 sq. ft. raised floor
                    • (12) 26-ton Data Air AC units
                    • Very Early Smoke Detection Apparatus (VESDA)
                    • Pre-action dry pipe sprinkler system
                    • Over 220 smoke detectors in integrated system
                    • Northern Proximity security badge entry/exit
                    • TXU fault tolerant electrical grid
                    • 2000 amps of 480v input power
                    • 1 main transfer switches
                    • (2) 500KVA Powerware UPS units, 90 batteries each
                    • Standalone PDUs at each cabinet row
                    • 1.5-megawatt generator (2200 gallon tank)


          STX5: Infomart, Dallas, TX

                    • 51,000 sq. ft. facility
                    • 35,000 sq. ft. raised floor
                    • (25) HVAC units totalling 775 tons
                    • Very Early Smoke Detection Apparatus (VESDA)
                    • Pre-action dry pipe sprinkler system
                    • Over 400 smoke detectors in integrated system
                    • Northern Proximity security badge entry/exit
                    • Multiple TXU fault tolerant electrical grid
                    • 4600 amps of 480v input power
                    • 3 main transfer switches
                    • (6) 500KVA Powerware UPS units, 120 batteries each
                    • Standalone PDUs at each cabinet row
                    • 3.5-megawatts of generating capacity

          STX6: Stemmons Freeway, Dallas, TX

                    • 72,000 sq. ft. facility
                    • (8) HVAC units totalling 240 tons (expanding to 1650 tons)
                    • Dual 550 ton carrier chillers (adding one more)
                    • Very Early Smoke Detection Apparatus (VESDA)
                    • Pre-action dry pipe sprinkler system
                    • Over 500 smoke detectors in integrated system (increasing to 1000)
                    • Northern Proximity security badge entry/exit
                    • 6000 amps of 480v input power
                    • 2 main transfer switches
                    • (2) 750KVA MGE UPS units (expanding to 6 750 KVA UPS units)
                    • Dual TXU electrical grids
                    • Multiple levels of physical security
                    • 2-megawatt generator (adding two more)
                    • 24 x 7 staffing
                    • Operates on the existing STX2 network

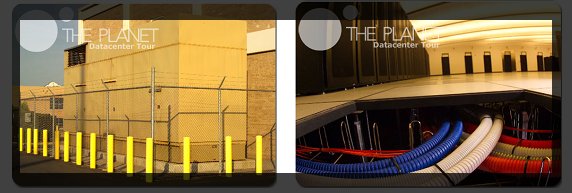

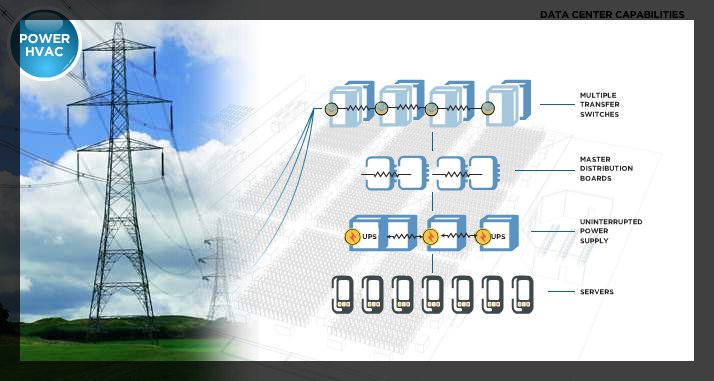

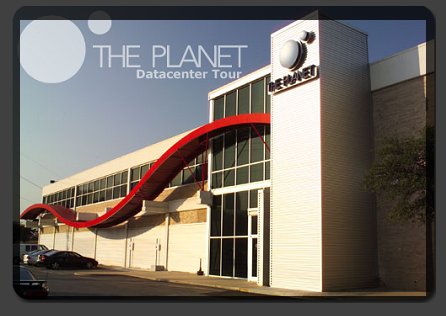

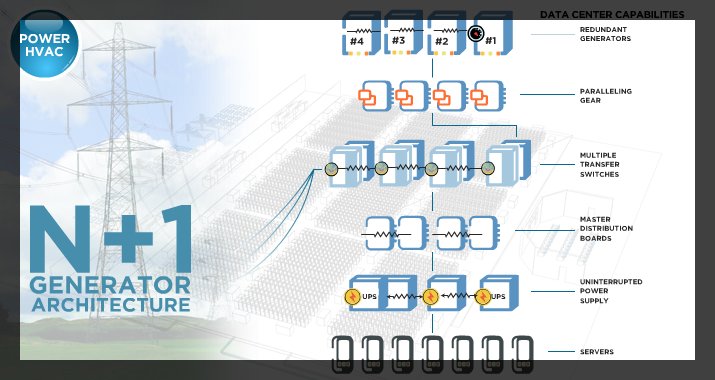

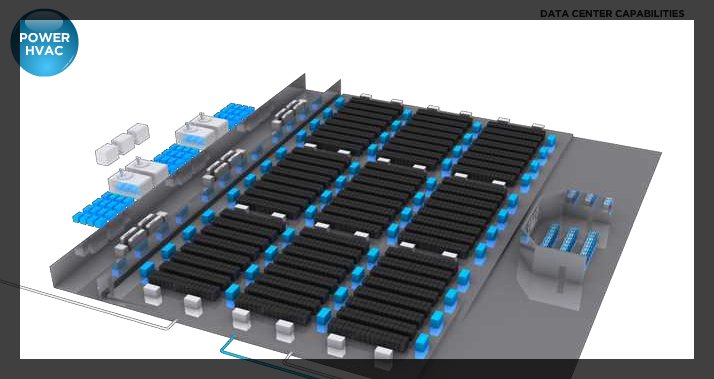

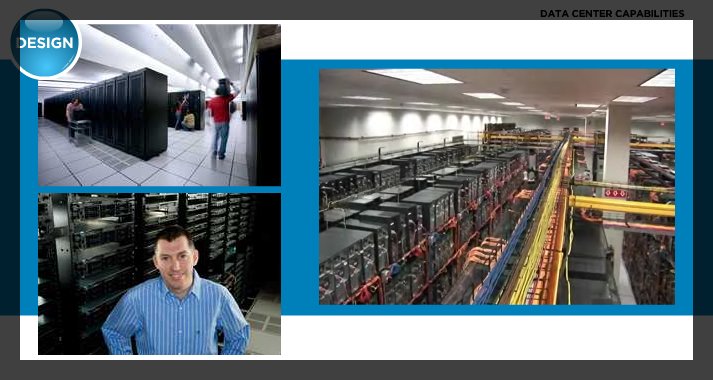

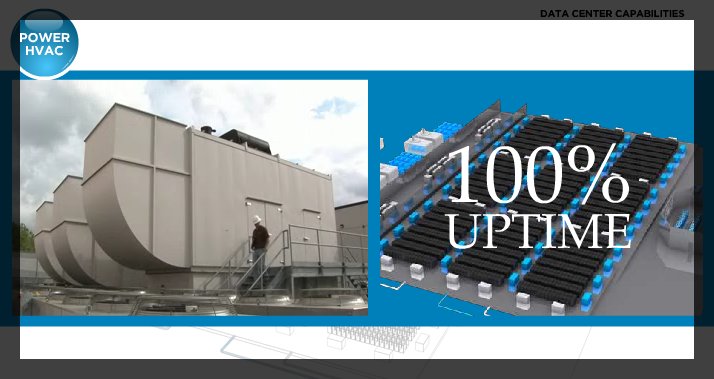

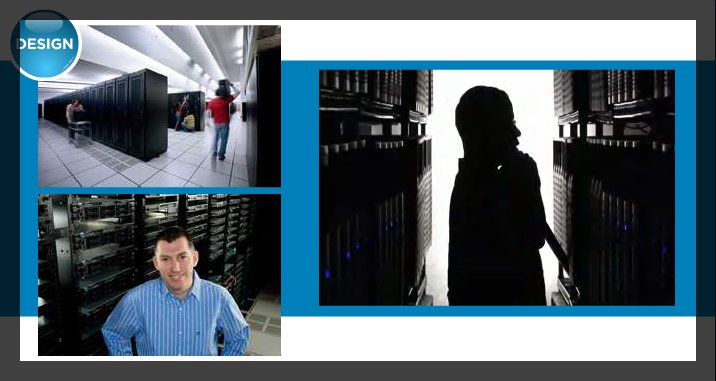

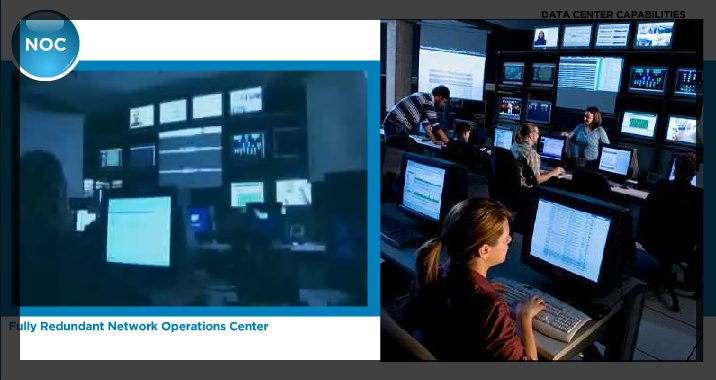

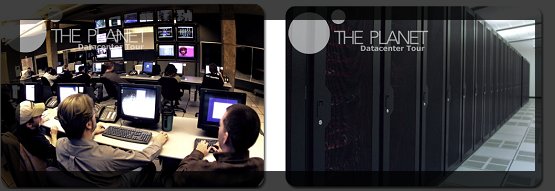

Algunas fotografías de la Infraestructura
